Eco Max M Connected

Eco Max M Connected with Glass Back and Seated Height Table

Eco Max M Connected

Patent Pending

American Made

The Seamless Conference Room for Mid-Sized Teams

The Eco Max M Connected offers a sophisticated solution for expanding your meeting capabilities without construction. By seamlessly linking two modular pods, this configuration creates a continuous, acoustically optimized environment designed to comfortably accommodate 8 to 9 people. It provides the privacy and spaciousness of a traditional conference room, making it perfect for leadership updates, hybrid collaborations, or creative group workshops.

Uniquely engineered for unity, the connected design features a seamless, floor-free interior that removes the central threshold, ensuring a smooth, barrier-free surface throughout. Despite the expanded footprint, it maintains 30.2 dB speech level reduction (Class A), ensuring that sensitive discussions remain confidential. The internal climate is managed by a synchronized ventilation system, ensuring fresh air reaches every corner of the unified workspace.

IBCCES Certified Autism Resource

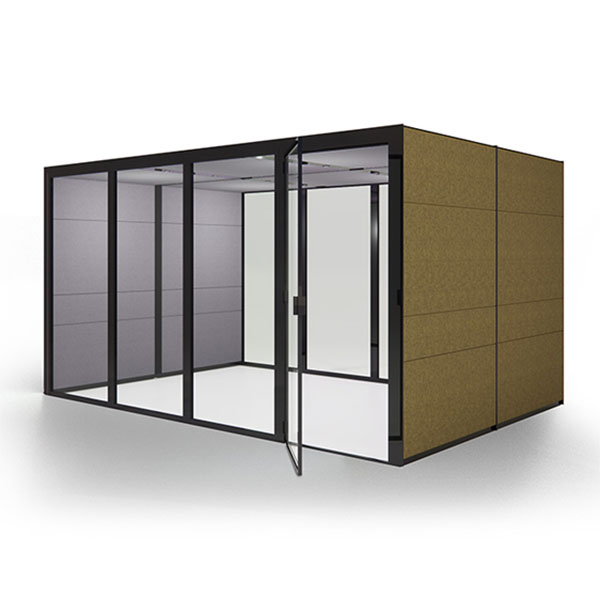

Eco Max M Connected with Glass Back
Eco Max M Connected with Glass Back
Eco Max M Connected with Glass Back and Seated Height Table
Eco Max M Connected with Glass Back and Seated Height Table

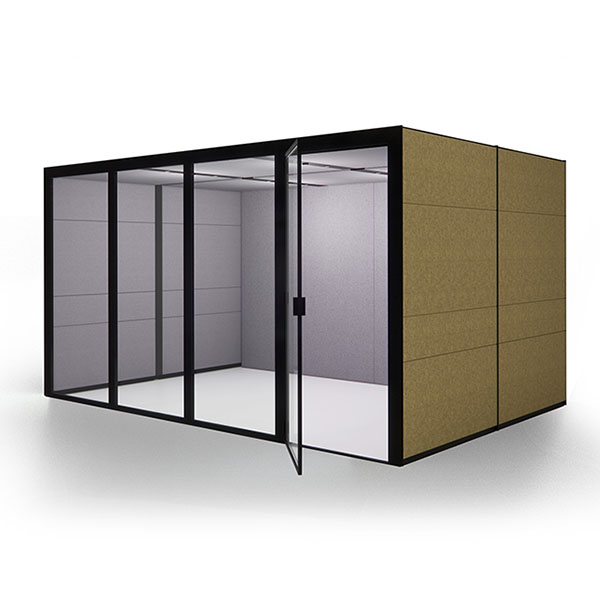

Eco Max M Connected with Upholstered Back
Eco Max M Connected with Upholstered Back

Centralized Intelligence & Adaptive Layouts

The Eco Max M Connected streamlines the user experience through smart integration. A specialized deep center column bridges the two units, providing the ideal housing for integrated power outlets and a wall mount for a presentation screen, turning the center of the pod into a dedicated media hub. A single ceiling-mounted motion sensor intelligently manages the LED lighting and ventilation across the entire suite, maximizing energy efficiency.

Flexibility is built into the framework. The interior can be customized with High Tables for active collaboration or Low Tables with Sofas for comfortable, longer sessions. Connectivity is robust, with HDMI, USB, and data ports ensuring seamless integration for hybrid meetings. Crafted from circular materials like recycled wood and textiles, the Eco Max M Connected allows your office footprint to scale sustainably.

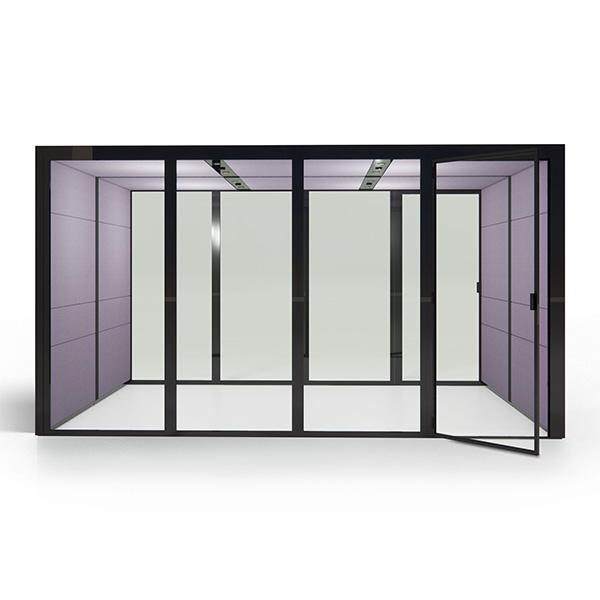

Eco Max M Connected
Eco Max M Connected
Technical drawings of the Eco Max M Connected Pod with measurements.

Exterior Dimensions

Width: 166.3″
Depth: 114.2″
Height: 91.9″
Door Width: 36.1″

Interior Dimensions

Width: 157.8″
Depth: 109.8″
Height: 88″

Technical drawings of the Eco Max M Connected Pod with measurements.

Exterior Dimensions

Width: 166.3″
Depth: 114.2″
Height: 91.9″
Door Width: 36.1″

Interior Dimensions

Width: 157.8″
Depth: 109.8″
Height: 88″

Resources

Our Acoustic Reports, CAD & SketchUp Files, Eco Passports, and Spec Sheets embody our commitment to simplicity, adaptability, and sustainability. Ideal for architects, designers, and innovators championing green projects.

Options

Shelf Low
Shelf Low
Column Table
Column Table
Magnetic White Board
Magnetic White Board
LCD Screen Mounting
LCD Screen Mounting
Medium Sofa
Medium Sofa
